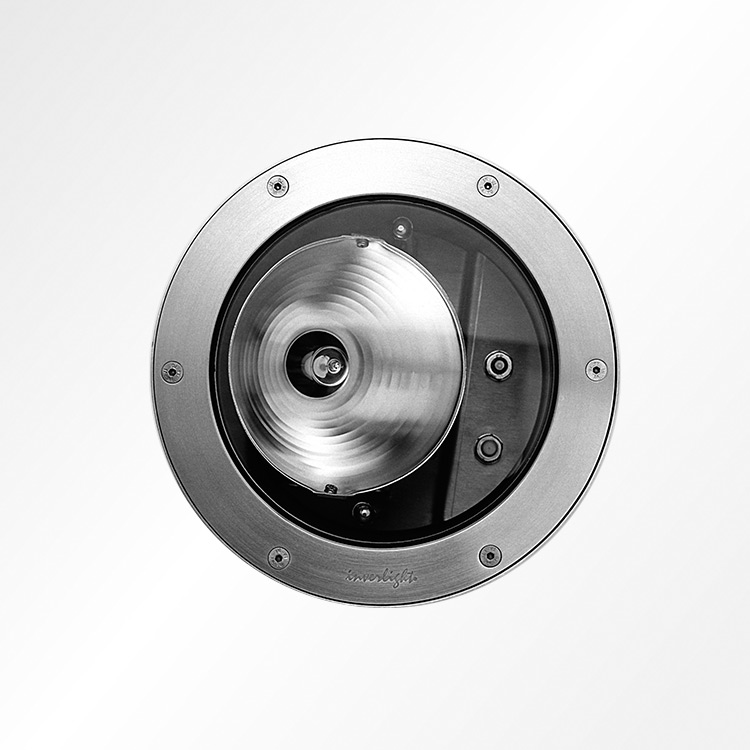

Marell 22 double body floor level

Adjustable optics:

  • ±25°   (HCI)
  • ±15°  (LED)


Material:

  • In-ground uplighter completely made of stainless steel AISI 316 with double body: optical space + space for electronic components.


Diffuser:

  • Transparent glass.
  • Optional  sand-blasted glass  (product code + SB)
  • Optional  skid blocking glass.  (codice prodotto + KS)


Led:

  • LED 3000K
  • Optional LED 4000K + (product code +4K)


Color:

  • Inox
  • Optional Browntech (product code +BT)



Capacity load:

  • 2200 kg.
  • Optional 3200 kg
Code Lighting fitting Description Diffusion Dimensions Weight
40821.001 G12 \ 1 x HCI-T \ 35W \ 3300lm \ 230V - 10° Ø220 5 kg
40821.002 G12 \ 1 x HCI-T \ 35W \ 3300lm \ 230V - 25° Ø220 5 kg
40821.003 G12 \ 1 x HCI-T \ 35W \ 3300lm \ 230V - 45° Ø220 5 kg
40822.001 G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V - 10° Ø220 5 kg
40822.002 G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V - 25° Ø220 5 kg
40822.003 G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V - 45° Ø220 5 kg
50521.001 Graphite louvres HCI 10° - G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V Ø220 5 kg
50521.002 Graphite louvres HCI 25° - G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V Ø220 5 kg
50521.003 Graphite louvres HCI 45° - G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V Ø220 5 kg
40831.001 LED 12W \ 3000K \ 1720lm \ 220-240V - 10° Ø220 5 kg
40831.002 LED 12W \ 3000K \ 1720lm \ 220-240V - 17° Ø220 5 kg
40831.003 LED 12W \ 3000K \ 1720lm \ 220-240V - 35° Ø220 5 kg
40831.004 LED 12W \ 3000K \ 1720lm \ 220-240V - 73° Ø220 5 kg
40832.001 LED 17W \ 3000K \ 2610lm \ 220-240V - 10° Ø220 5 kg
40832.002 LED 17W \ 3000K \ 2610lm \ 220-240V - 17° Ø220 5 kg
40832.003 LED 17W \ 3000K \ 2610lm \ 220-240V - 35° Ø220 5 kg
40832.004 LED 17W \ 3000K \ 2610lm \ 220-240V - 73° Ø220 5 kg
40892 Housing

Dimensions

Dimensions marell22 Inverlight

Diffusion Luminosa

Diffusion Luminosa marell22 Inverlight
