Marell 22 square

Adjustable optics ±25°  (HCI)


Material:

  • stainless steel AISI 316 L



Diffusore:

  • Transparent glass.
  • Optional  sand-blasted glass  (product code + SB)
  • Optional  skid blocking glass.  (codice prodotto + KS)



Color:

  • Inox
  • Optional Browntech (product code +BT)



Capacity load:

  • 2200 kg.
Code Lighting fitting Description Diffusion Dimensions Weight
40274 E27 \ 1 x PAR 30 \ 230V 220x220 5 kg
40275.001 G12 \ 1 x HCI-T \ 35W \ 3300lm \ 230V - 10° 220x220 5 kg
40275.002 G12 \ 1 x HCI-T \ 35W \ 3300lm \ 230V - 25° 220x220 5 kg
40275.003 G12 \ 1 x HCI-T \ 35W \ 3300lm \ 230V - 45° 220x220 5 kg
50521.001 Graphite louvres HCI 10° - G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V Ø220 5 kg
50521.002 Graphite louvres HCI 25° - G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V Ø220 5 kg
50521.003 Graphite louvres HCI 45° - G12 \ 1 x HCI-T \ 70W \ 5800lm \ 230V Ø220 5 kg
40291 Housing

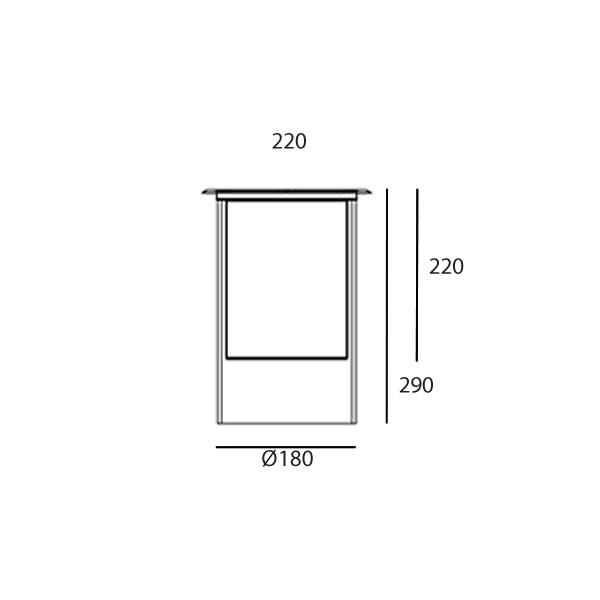

Dimensions

Dimensions Marell 22 square Inverlight

Diffusion

Diffusion Marell 22 square Inverlight
