Mistral

Material:

  • stainless steel AISI 316 L



Diffuser:

  • transparent polycarbonate
  • optional Transparent glass (product code +GL)


Chrome louvre:

  • chrome
  • optional graphite/chrome (product code  +GC)


Color:

  • Inox
  • Optional Browntech (product code +BT)
  • Optional Green (codice prodotto + GR)



Led:

  • LED 3000K
  • Optional LED 4000K + (product code +4K



Optional: cement mounting kit.

Code Lighting fitting Description Diffusion Dimensions Weight
20401 G24-q3 \ 1 x TC-E \ 26W \ 1800lm \ 220-240V - Transparent polycarbonate diffuser 360° Ø140 h 1000 mm 7 kg
20402 G24-q3 \ 1 x TC-E \ 26W \ 1800lm \ 220-240V - Transparent polycarbonate diffuser 360° Ø140 h 600 mm 6 kg
20405 GX24q-3/4 \ 1 x TC-TEL 26/32/42W \ 1750/2400/3200lm \ 220-240V - Transparent polycarbonate diffuser 360° Ø140 h 1000 mm 7 kg
20406 GX24q-3/4 \ 1 x TC-TEL 26/32/42W \ 1750/2400/3200lm \ 220-240V - Transparent polycarbonate diffuser 360° Ø140 h 600 mm 6 kg
20471 LED 3000K \ 9W \ 1185lm \ 220-240V - Transparent polycarbonate diffuser 360° Ø140 h 1000 mm 7 kg
20479 LED 3000K \ 9W \ 1185lm \ 220-240V - Transparent polycarbonate diffuser 360° Ø140 h 600 mm 6 kg
20407 LED 3000K \ 19W \ 2250lm \ 220-240V - Transparent polycarbonate diffuser 360° Ø140 h 1000 mm 7 kg
20408 LED 3000K \ 19W \ 2250lm \ 220-240V - Transparent polycarbonate diffuser 360° Ø140 h 600 mm 6 kg
20490 E27 LED \ MAX 10W 360° Ø140 h 1000 mm 7 kg
20494 E27 LED \ MAX 10W 360° Ø140 h 600 mm 6 kg
50302 Cement mounting kit h 1000 mm

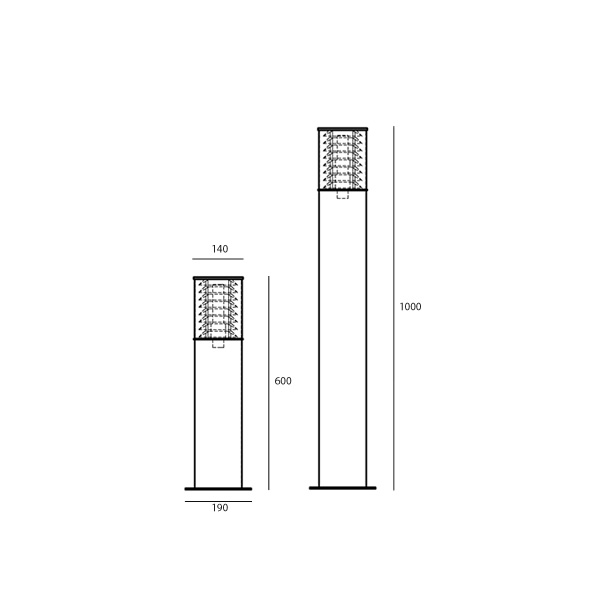

Dimensions

Dimensions Mistral Inverlight

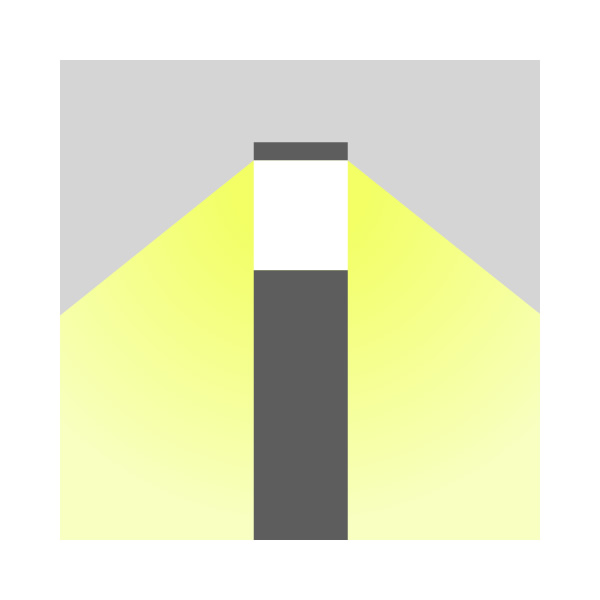

Diffusion

Diffusion Mistral Inverlight

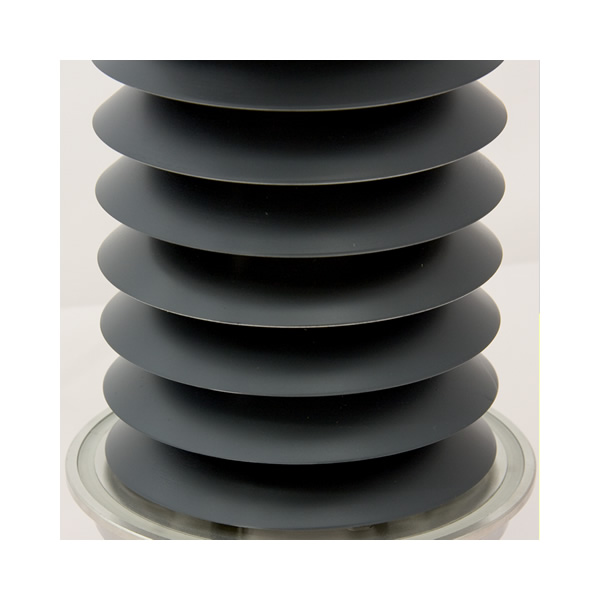

Chrome louvre graphite/chrome

Chrome louvre graphite/chrome
